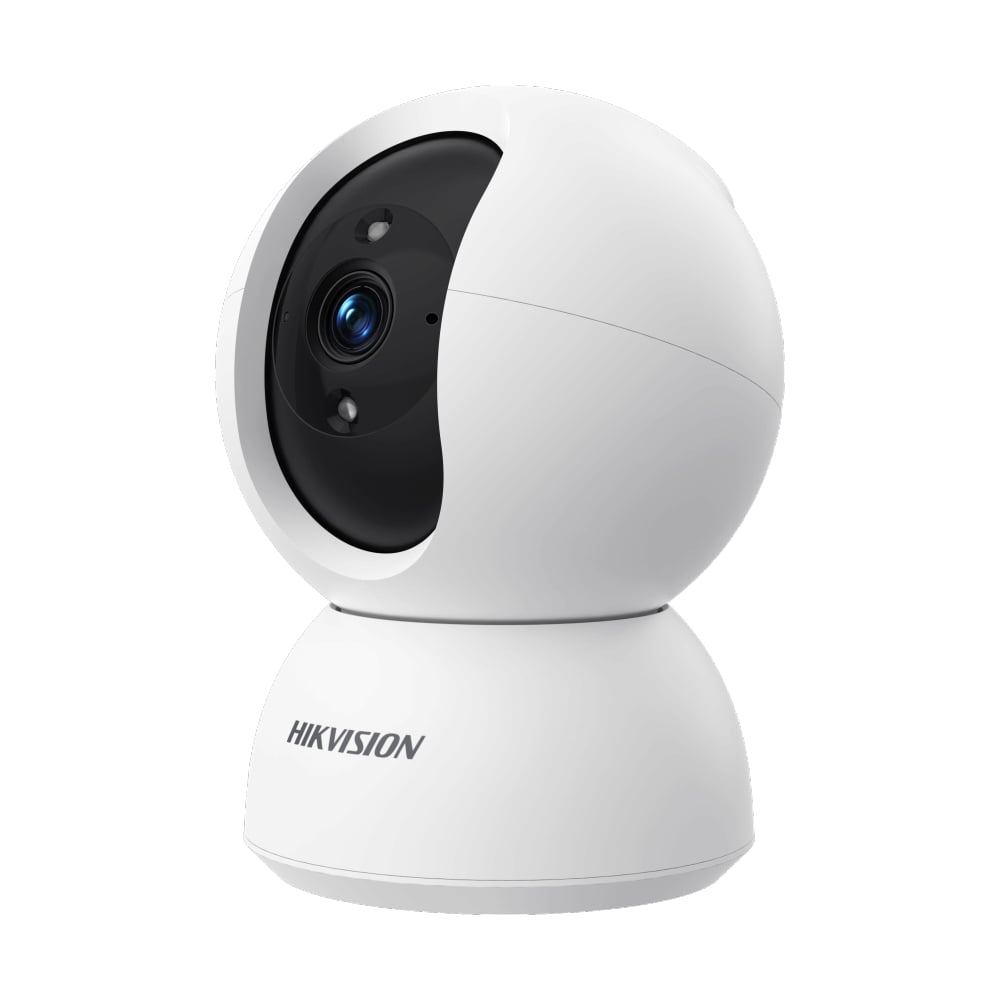

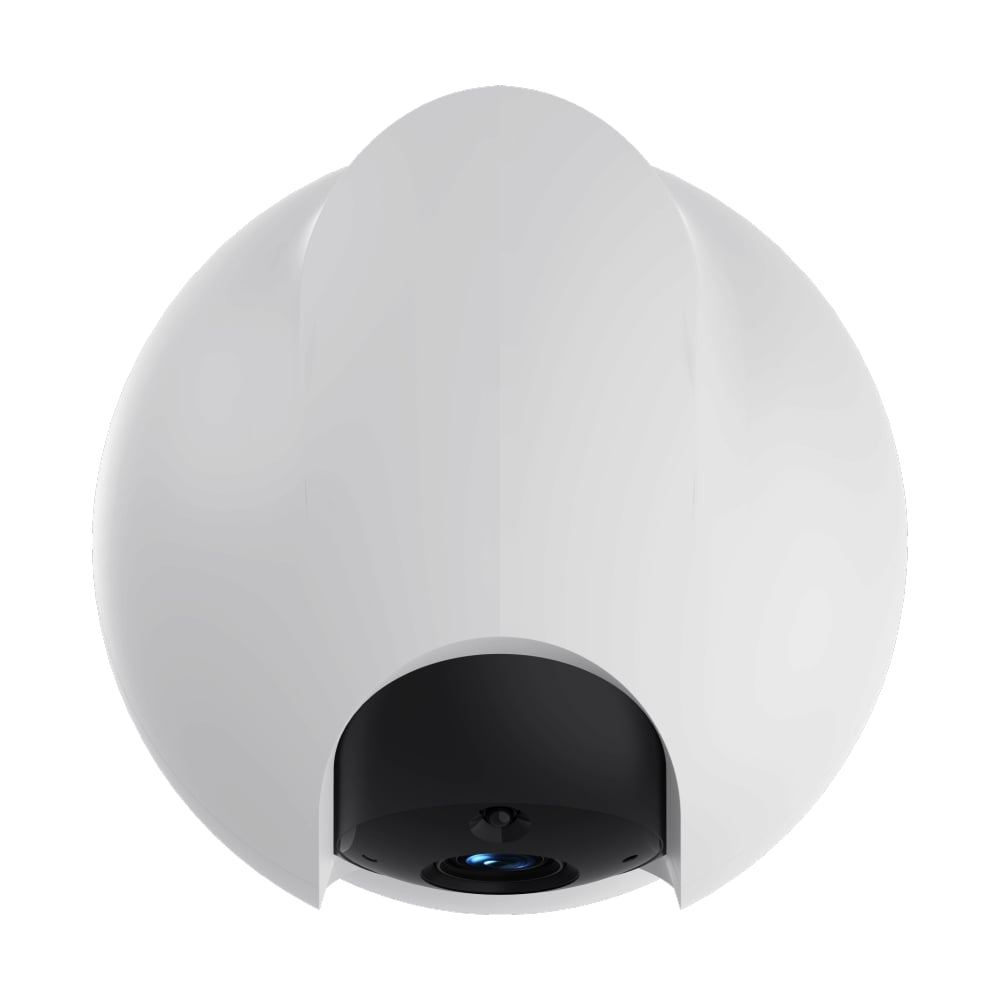

HIKVISION Smart IP Camera (2.0MP) #DS-2CV2Q21G1-IDW - A0175060

Brand : HIKVISION
Model : DS-2CV2Q21G1-IDW
Image Sensor : 2MP , 1/3" Progressive Scan CMOS
Lens : 4mm
Lens Mount : M12
Focus : N/A
Zoom : N/A
Angle of View : horizontal FOV 75°, vertical FOV 45°, diagonal FOV 85°
Adjustment Angle : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Shutter : 1/3 s to 1/100,000 s
Minimum Illumination : Color: 0.05 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
IR : 10m
Day/Night : IR cut filter
WDR : Digital WDR
Video Resolution : 1920 × 1080
Video Compression : Main stream: H.265/H.264
Sub-stream: H.265/H.264
Frame Rate : Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Sub-Stream
50 Hz: 25 fps (768 × 432, 512 × 288)
60 Hz: 30 fps (768 × 432, 512 × 288)
Audio : Two-way
Solar Cell : NONE
Network : Encryption Mode : WPA-PSK/WPA2-PSK
Frequency Range : 2.412 GHz to 2.472 GHz
Channel Bandwidth : 20 MHz
Wireless Range : Up to 50 m (The performance varies based on actual environment)
Battery : NONE
Storage Slot : Micro SD Card Slot (up to 512GB)
Interface : 1x RJ45 10M/100M self-adaptive Ethernet port
Reset Button : YES
Alarm : Motion detection (support alarm triggering by specified target type (human)), exception
ONVIF : ONVIF (Profile S, Profile T, Profile G), SDK
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
Function : Support Motion 2.0, human detection
PoE : NONE
Power : 5 VDC ± 10%, 1 A
Power Consumption : max. 5 W
Working Environment : Storage Conditions-10 °C to 45 °C (14 °F to 113 °F)
Humidity 95% or less (non-condensing)
Startup and Operating Conditions-10 °C to 45°C (14 °F to 113 °F)
Humidity 95% or less (non-condensing)
Ingress Protection : NONE
Package Content : N/A
Dimension (W x D x H) : 8.00 x 8.00 x 12.20 cm
Net Weight : 0.21
Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight : 0.00
Volume : 0.00
ประกัน : 3 ปี
