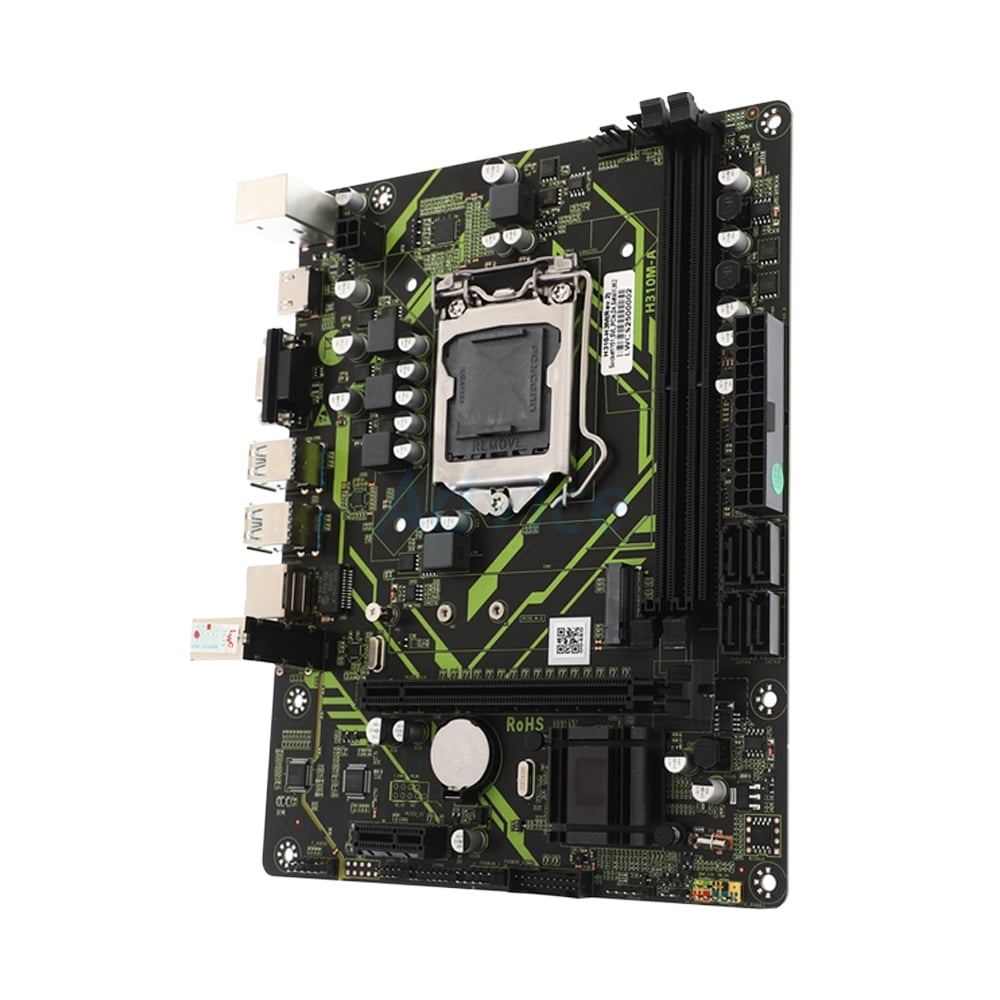

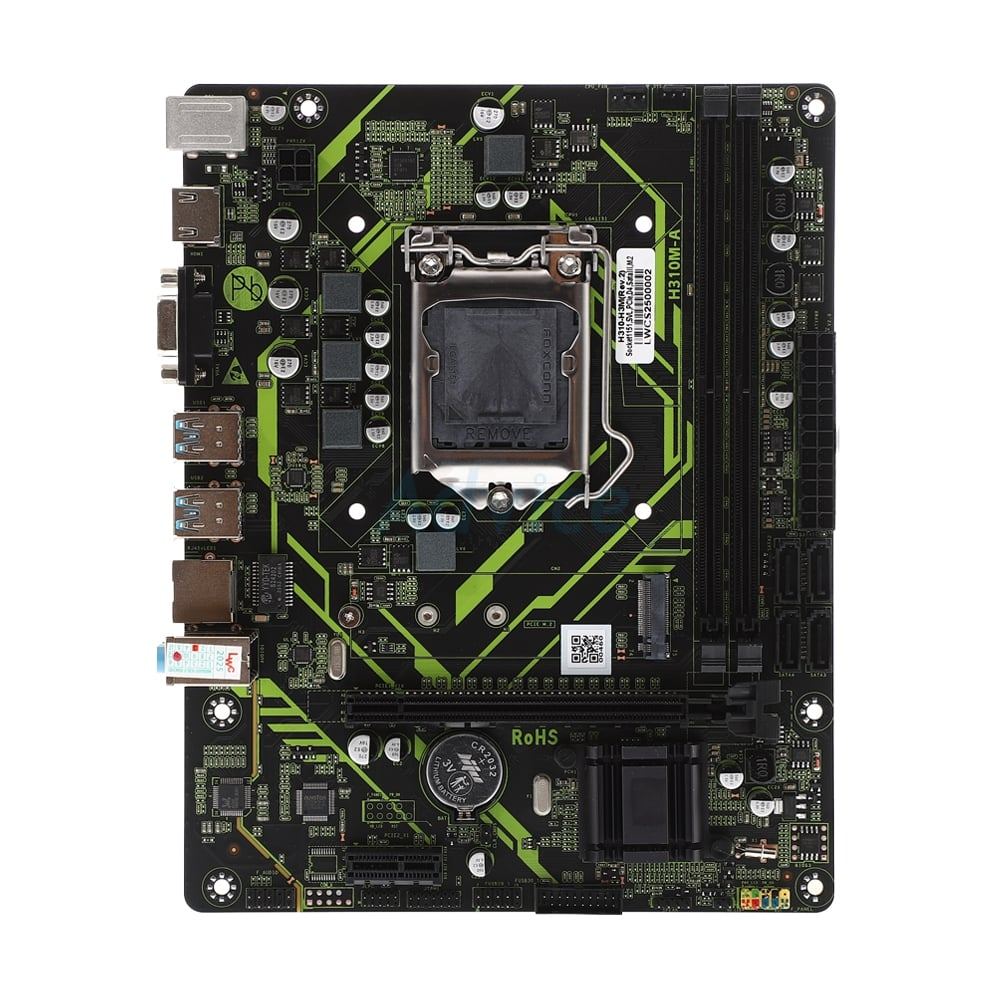

LONGWELL MAINBOARD (เมนบอร์ด) (1151V2) H310-H3M DDR4 (REV. 2.0) - A0176510

Brand : LONGWELL
Model : H310-H3M DDR4 (REV 2.0)
CPU Support : Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7
processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1151 V2 package
CPU Brand : Intel
Socket : 1151 V2
Chipset : Intel Q370
Memory Support : Memory Support 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Maximum Memory Bus : 2666
Graphics : N/A
Multi Graphic Support : None
Audio : Audio Realtek® ALC662 codec
High Definition Audio
5.1-channel
Expansion Slots : 1 x PCI Express x16 slot
1 x PCI Express x1 slot
Maximum PCIe Version : PCIe 3.0
Storage : 4 x SATA 6Gb/s connectors
1 x M.2 NVME
M.2 Storage Type Support : NVMe
M.2 Slot : 1
USB : 4 x USB 3.0 ports
1 x USB 3.0 header (Internal)
1 x USB 2.0 header (Internal)
Internal I/O Connectors : 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM 2.0 header
1 x Speaker Connector
1 x Clear CMOS jumper

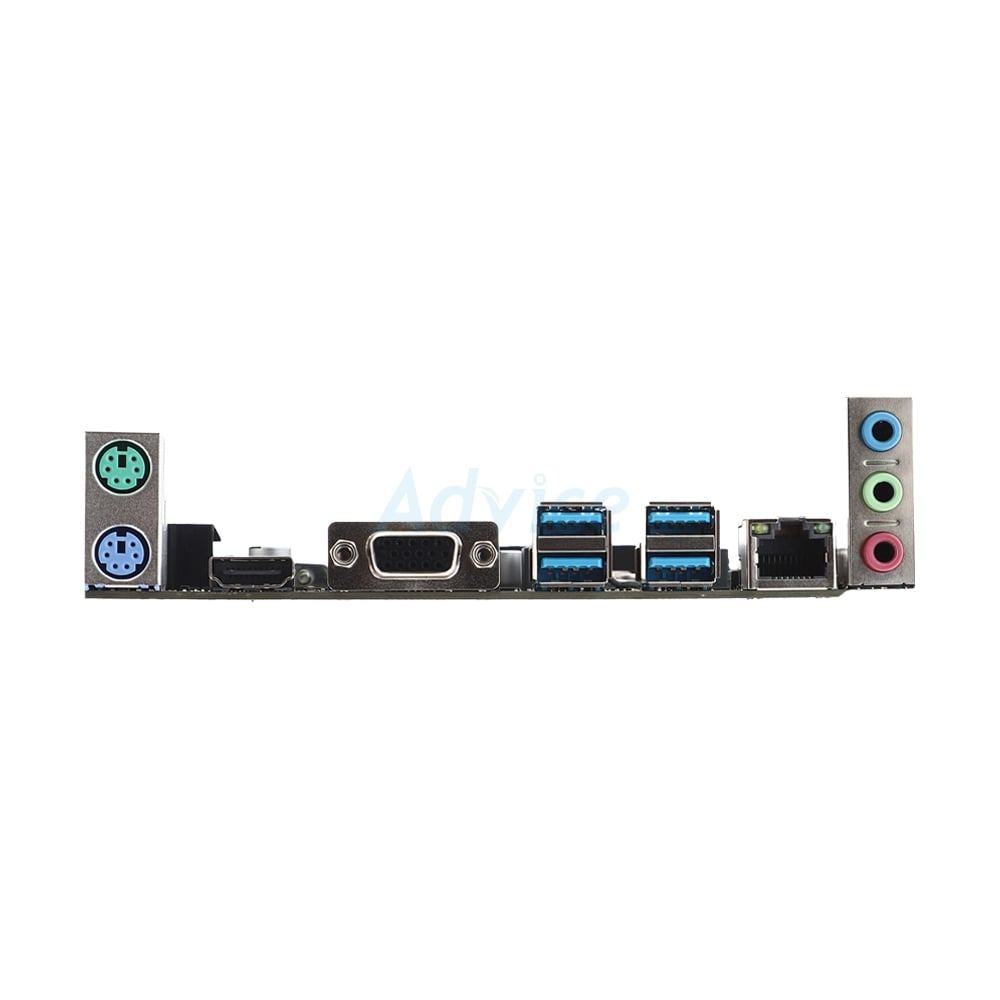

Back Panel Connectors : 2 x PS.2 keyboard/mouse port
1 x HDMI port
1 x VGA port
4 x USB 3.0 ports
1 x Lan port
3 x audio jacks
LAN : 10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111H
Wireless Data Network : None
Form Factor : Micro ATX
H/W Monitoring : N/A
BIOS : N/A
Special Features : N/A
Software Features : N/A
Operating System Support : Win 7-11
Support UEFI mode
Package Contents : 1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
Dimension (W x D x H) : 21.60 x 17.00 x 0.00 cm
Net Weight : 0.00
Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight : 0.00
Volume : 0.00
ประกัน : 3 ปี
